Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 664 928 | UPPER FORK CROSS BRACE WITH MOUNT | - | |
| 2 | 31 42 2 331 942 | SNAP RING - 26X1,2 | - | |
| 3 | 31 42 8 545 296 | JOINT LINK | - | |
| 4 | 31 42 2 311 989 | LOCK RING | - | |
| 5 | 31 42 2 314 723 | ANGULAR BALL BEARING - 47X20X20,6 | - | |
| 6 | 31 42 7 676 129 | BOLT | - | |
| 7 | 31 42 2 314 132 | COVERING CAP | - | |
| 8 | 31 42 7 671 358 | COVERING CAP | - | |
| 10 | 31 42 2 330 996 | COLLAR NUT - M14X1,5 MK | - | |
| 12 | 31 42 7 708 518 | BADGE - D=45MM | - | |
| 13 | 07 11 9 909 724 | O-RING - 40X3,5-N-EPDM70 | - | |
07 11 9 909 724 | O-RINGAlternative for position 13 | - |

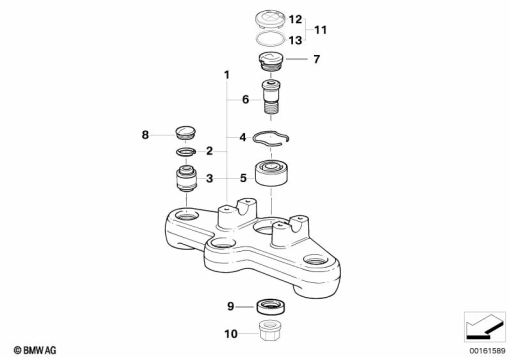

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
