R1200GS 05-07 (K25) | Front Suspension

FORK SLIDER/LOWER FORK BRIDGE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #31_0685 | 16 parts

100%

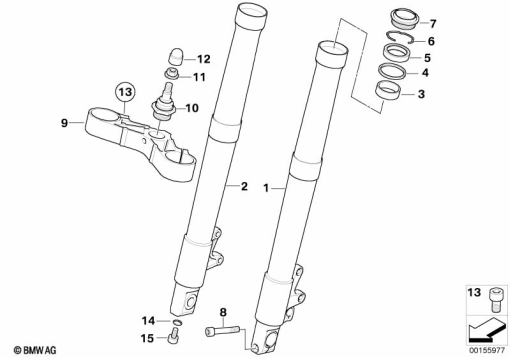

R1200GS 05-07 (K25) FORK SLIDER/LOWER FORK BRIDGE exploded view parts diagram

Parts List (16)

#	Part Number	Description	Qty
1	31 42 7 699 187	SLIDER TUBE LEFT (to 08/06)	-
	34 51 7 706 354	SPACER RING (to 08/06)Alternative for position 1	-
	31 42 7 699 187	SLIDER TUBE LEFT (from 08/06)Alternative for position 1	-
2	31 42 7 664 954	SLIDER TUBE RIGHT	-
3	31 42 7 666 227	GUIDE BUSH	-
4	31 42 7 666 226	SHIM	-
5	31 42 7 666 225	GASKET RING	-
6	31 42 7 666 224	SUPPORTING RING	-
7	31 42 7 666 223	DUST PROTECTION COLLAR - D=41MM	-
8	07 12 9 904 068	ISA SCREW - M8X35-8.8-ZNS3	-
9	31 42 7 664 956	FORK BRIDGE, BOTTOM, WITH MOUNTING	-
10	31 42 7 652 644	BALL JOINT - M14X1,5-MK	-
11	31 42 2 330 996	COLLAR NUT - M14X1,5 MK	-
12	31 42 2 314 711	COVER, BLACK	-
13	07 12 9 904 477	ISA SCREW - M8X25-10.9-ZNS3	-
15	07 12 9 904 477	ISA SCREW - M8X25-10.9-ZNS3	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
