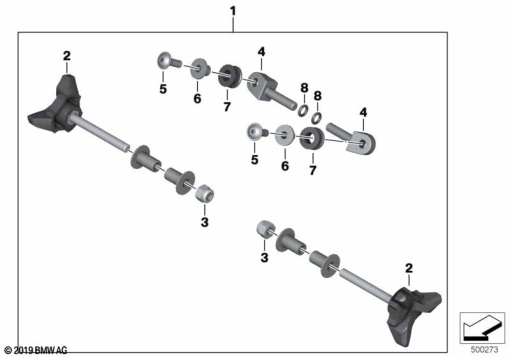

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 677 670 | WINDSHIELD ADJUSTMENT, MECHANICAL | 1 | |
| 2 | 46 63 7 727 079 | ADJUSTMENT KNOB FOR WINDSHIELD | 1 | |
| 3 | 07 12 9 904 882 | HEX NUT - M6-8-ZNS3 | 1 | |
| 4 | 46 63 7 694 709 | WINDSHIELD BRACKET, LEFT | 1 | |
| 4 | 46 63 7 694 710 | WINDSHIELD BRACKET, RIGHT | 1 | |
| 5 | 46 63 7 653 066 | BINDING HEAD SCREW - M5X18 A2-70 | 1 | |
| 6 | 46 63 7 724 481 | FLANGE SLEEVE, STEEL - L=7MM | 1 | |
| 7 | 46 63 8 555 101 | RUBBER GROMMET | 1 | |
| 8 | 07 11 9 906 348 | O-RING - 6X1,8 | 1 |
