Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 668 783 | WINDSHIELD | - | |
| 2 | 46 63 7 677 670 | WINDSHIELD ADJUSTMENT, MECHANICAL | - | |
| 3 | 46 63 7 727 079 | ADJUSTMENT KNOB FOR WINDSHIELD | - | |
| 5 | 46 63 7 673 913 | COVERING LEFT | - | |
46 63 7 673 914 | COVERING RIGHTAlternative for position 5 | - | ||
| 6 | 46 63 7 673 915 | LOCKING DISC LEFT | - | |
46 63 7 673 916 | LOCKING DISC RIGHTAlternative for position 6 | - | ||
| 8 | 07 12 9 904 882 | HEX NUT - M6-8-ZNS3 | - | |
| 9 | 46 63 7 694 709 | WINDSHIELD BRACKET, LEFT | - | |
46 63 7 694 710 | WINDSHIELD BRACKET, RIGHTAlternative for position 9 | - | ||
| 10 | 07 11 9 905 729 | HEX NUT - M5-8-ZNNIV SI | - | |
| 11 | 07 11 9 906 348 | O-RING - 6X1,8 | - | |
| 12 | 46 63 7 653 066 | BINDING HEAD SCREW - M5X18 A2-70 | - | |
| 13 | 46 63 7 724 481 | FLANGE SLEEVE, STEEL - L=7MM (to 10/07) | - | |
| - | 46 63 8 555 101 | RUBBER GROMMET (to 10/07) | - | |
| 13 | 46 63 7 724 481 | FLANGE SLEEVE, STEEL - L=7MM (from 10/07) | - | |
| 14 | 46 63 8 555 101 | RUBBER GROMMET (to 10/07) | - | |
| - | 46 63 7 724 481 | FLANGE SLEEVE, STEEL - L=7MM (to 10/07) | - | |
| 14 | 46 63 8 555 101 | RUBBER GROMMET (from 10/07) | - | |
| 16 | 46 63 7 686 286 | FLANGED CAP SCREW - 5X16-A2-80 | - | |
| 17 | 46 63 7 658 638 | FLAT NUT - M5 | - | |
| 18 | 06 32 7 657 949 | FILLISTER HEAD SCREW - M5X16-A2-80-MK | - | |
| 19 | 71 21 2 346 071 | LABEL | - |

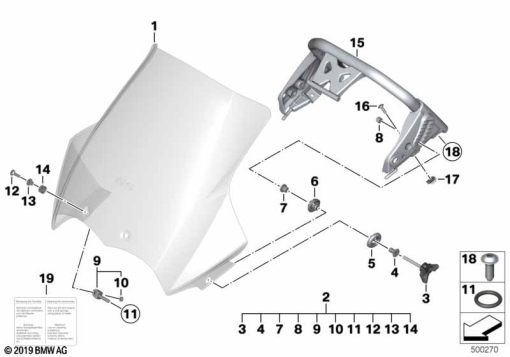

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
