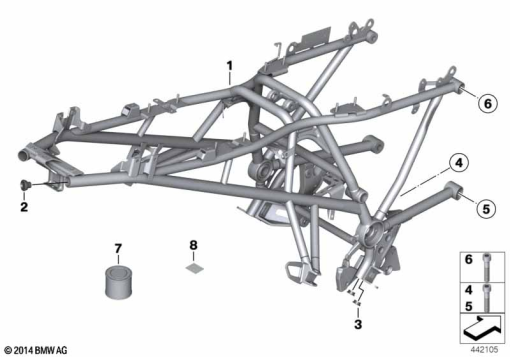

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 7 706 358 | REAR FRAME - WEIßALU-2 (from 12/05) | 1 | |
| 1 | 71 21 7 657 000 | TYPE IDENTIFICATION PLATE EU, ADHERED - CODE (from 12/05) | 1 | |
| 1 | 46 51 7 660 416 | REAR FRAME - WEIßALU-2 (to 12/05) | 1 | |
| 1 | 71 21 7 657 000 | TYPE IDENTIFICATION PLATE EU, ADHERED - CODE (to 12/05) | 1 | |
| 2 | 46 51 7 677 828 | BLIND PLUG | 1 | |
| 3 | 46 51 7 677 827 | BLIND PLUG | 1 | |
| 4 | 07 12 9 905 217 | ISA SCREW - M8X55 | 1 | |
| 5 | 07 12 9 906 088 | ISA SCREW - M12X50-8.8 ZNS3 | 1 | |
| 6 | 07 12 9 903 801 | ISA SCREW - M10X40-8.8-ZNS3 | 1 | |
| 7 | 51 91 7 654 123 | SET: METALLIC PAINT SPRAY WHITEALUMINIUM2 - 437 | 1 | |
| 7 | 51 91 7 654 131 | SET: TWO STAGE TOUCH UP WHITEALU 2 - 437 | 1 | |
| 8 | 46 51 2 330 634 | PROTECTION FOIL - 25X30 | 1 |
