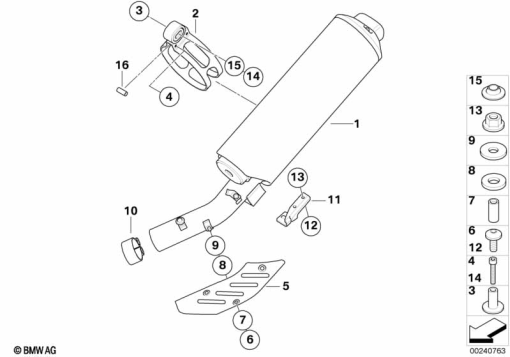

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 12 7 694 462 | REAR MUFFLER | - | |
18 12 7 694 463 | REAR MUFFLER - CHROMAlternative for position 1 | - | ||
| 2 | 18 12 7 681 299 | BRACKET EXHAUST | - | |
| 3 | 18 12 7 673 764 | SPACER SLEEVE | - | |
| 4 | 07 12 9 905 126 | ISA SCREW - M6X30 | - | |
| 5 | 18 11 7 677 322 | TAILPIPE TIP | - | |
| 6 | 06 32 7 651 211 | FILLISTER HEAD SCREW - M5X12-A2-80 | - | |
| 7 | 18 12 7 684 062 | SLEEVE | - | |
| 8 | 07 11 9 905 231 | WASHER - 8-200 HV-A4 | - | |
| 9 | 18 12 7 684 063 | INSULATING WASHER | - | |
| 10 | 18 12 7 694 733 | CLAMP - D=54 | - | |
| 11 | 18 12 7 686 889 | STOPPER | - | |
| 12 | 46 63 7 659 459 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X16 | - | |
| 13 | 18 12 7 657 936 | PLUG-IN NUT | - | |
| 14 | 07 12 9 903 415 | ISA SCREW - M8X45-A2-70 | - | |
| 15 | 18 12 7 688 981 | WASHER - 28X8,2X10 | - | |
| 16 | 18 12 7 684 744 | SPACER SLEEVE | - |
