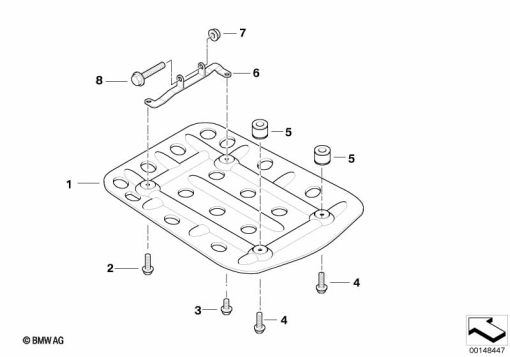

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 7 717 743 | UNDERRIDE PROTECTION (from 04/07) | - | |
63 12 7 680 859 | FILLISTER HEAD SCREW - M6X30-A2-80 (from 04/07)Alternative for position 1 | - | ||
46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 (from 04/07)Alternative for position 1 | - | ||
17 11 7 722 131 | GROMMET (from 04/07)Alternative for position 1 | - | ||
11 11 7 653 180 | FILLISTER HEAD SCREW - M6X20-A2-80 (from 04/07)Alternative for position 1 | - | ||
07 14 6 977 329 | WASHER - 6,4X25X1,5 (from 04/07)Alternative for position 1 | - | ||
07 14 7 693 887 | C-CLIP NUT - M6 (from 04/07)Alternative for position 1 | - | ||
| 2 | 07 12 9 904 559 | ASA-BOLT - M8X20-U1-8.8 (from 04/07) | - | |
| 3 | 07 12 9 904 072 | ASA-BOLT - M6X10-8.8-ZNS3 (from 04/07) | - | |
| 4 | 07 12 9 903 925 | ASA-BOLT - M8X25-8.8-ZNS3 (from 04/07) | - | |
| 5 | 11 11 7 690 552 | SPACER SLEEVE (from 04/07) | - | |
11 11 7 682 158 | VIBRATION DAMPER - M8 (from 04/07)Alternative for position 5 | - | ||
| - | 07 11 9 904 920 | HEX NUT - M8-A2-70 (from 04/07) | - | |
| 6 | 11 11 7 695 189 | BRACKET, UNDERRIDE PROTECTION (from 04/07) | - | |
| 7 | 07 11 9 904 670 | FLANGE NUT - M10-10-ZNS3 (from 04/07) | - | |
| 8 | 07 11 9 905 509 | FILLISTER-HEAD SCREW - M10X90-ZNS3 (from 04/07) | - |
