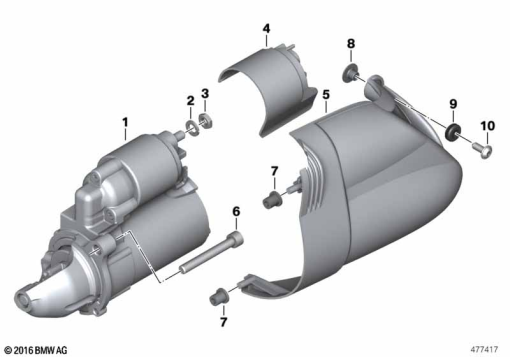

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 31 7 691 956 | STARTER - BOSCH | 1 | |
| 2 | 12 41 7 722 098 | SPRING WASHER - B8 VERZINNT | 1 | |
| 3 | 12 41 7 722 099 | HEX NUT - M8-8 VERZINNT | 1 | |
| 4 | 12 41 7 696 465 | TWIST PROTECTION | 1 | |
| 4 | 12415B40649 | TWIST PROTECTION | 1 | |
| 5 | 11 14 7 673 091 | COVER, STARTER MOTOR, SILVER | 1 | |
| 6 | 07 12 9 904 502 | ISA SCREW - M8X60 ZNS3 | 1 | |
| 7 | 11 14 1 341 249 | RUBBER GROMMET | 1 | |
| 8 | 63 12 7 727 887 | COLLAR BUSH - 18X6,1X8-ZNNIV | 1 | |
| 9 | 11 14 1 341 250 | RUBBER GROMMET | 1 | |
| 10 | 11 14 2 351 508 | FILLISTER HEAD SCREW | 1 |
