R1200GS 05-07 (K25) | Engine Electrics

OIL-LEVEL SENSOR

Diagram #12_2361 | 5 parts

100%

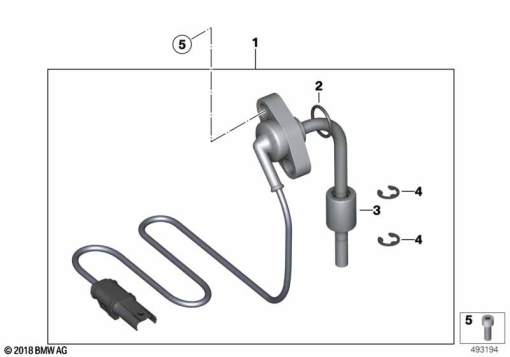

R1200GS 05-07 (K25) OIL-LEVEL SENSOR exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
13 62 7 673 502
OIL-LEVEL SENSOR1
2
13 62 7 680 004
O-RING - 20,8X2,41
3
13 62 7 697 763
FLOAT1
4
13 62 7 697 764
LOCK RING1
5
07 12 9 904 588
ISA SCREW - M6X16-8.8-ZNS31
