R1200GS 05-07 (K25) | Electrical System

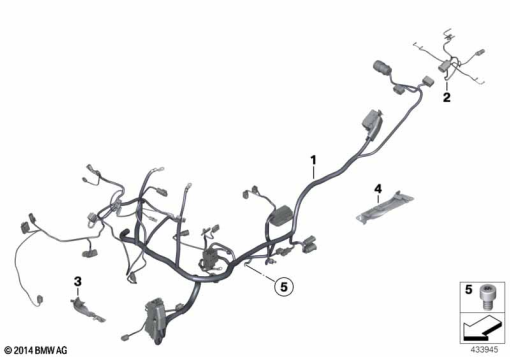

MAIN WRNG.HARNESS/REAR WRNG.HARNESS
Diagram #61_2464 | 10 parts
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 11 7 685 890 | MAIN WIRING HARNESS (to 12/05) | - | |
61 11 7 699 519 | MAIN WIRING HARNESS (12/05 to 08/06)Alternative for position 1 | - | ||
61 11 7 704 193 | MAIN WIRING HARNESS (from 08/06)Alternative for position 1 | - | ||
61 11 7 704 195 | MAIN WIRING HARNESS (from 08/06)Alternative for position 1 | - | ||
61 11 7 685 891 | MAIN WIRING HARNESS (to 12/05)Alternative for position 1 | - | ||
61 11 7 699 520 | MAIN WIRING HARNESS (12/05 to 08/06)Alternative for position 1 | - | ||
61 11 7 704 194 | MAIN WIRING HARNESS (from 08/06)Alternative for position 1 | - | ||
61 11 7 704 196 | MAIN WIRING HARNESS (from 08/06)Alternative for position 1 | - | ||
| 2 | 61 11 7 685 895 | TAIL PART WIRING HARNESS | - | |
| 5 | 07 14 7 691 336 | FILLISTER HEAD SCREW - ISA M6X12 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
