R1200GS 05-07 (K25) | Electrical System

CAP / BRACKET DIAGNOSTIC SOCKET

Diagram #61_3019 | 3 parts

100%

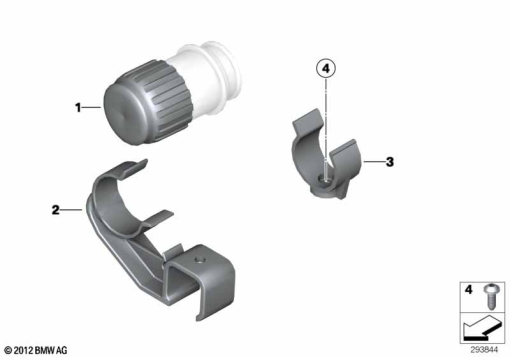

R1200GS 05-07 (K25) CAP / BRACKET DIAGNOSTIC SOCKET exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
61 13 2 306 793
0.021
3
61 13 7 676 283
DIAGNOSIS PLUG BRACKET1
4
07 14 9 128 053
FILLISTER HEAD SCREW - D=3,5X10MM1
