Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 21 8 389 125 | new battery number | - | |
61 21 8 394 179 | AGM BATTERIE - DEKA ETX14Alternative for position 1 | - | ||
| 2 | 61 21 7 706 474 | SET OF SCREWS | - | |
| 3 | 61 21 7 728 248 | BATTERY HOLD DOWN | - | |
| 4 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | - | |
| 6 | 61 21 7 677 986 | PROTECTION CAP, RED | - | |
| - | 61 21 8 520 153 | BATTERY AGM - LTX14-BS | - |

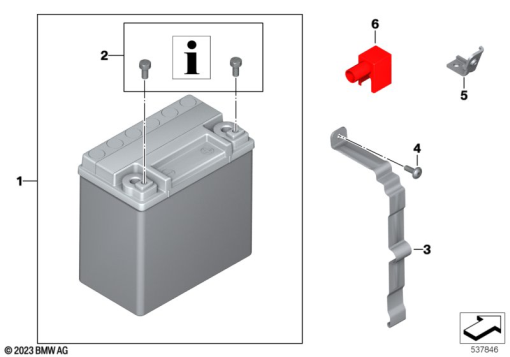

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
