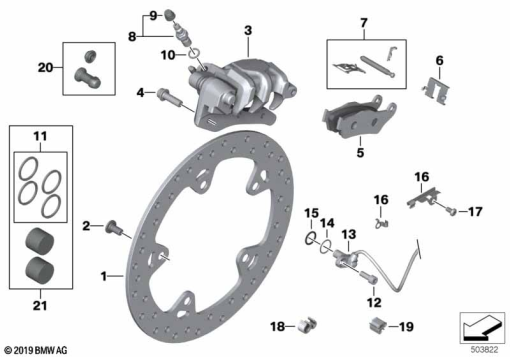

Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 7 664 102 | BRAKE DISK | - | |
| 5 | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - | |
| - | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - | |
| - | 34 21 7 677 603 | BRAKE CALIPER, REAR | - | |
| - | 34 21 7 664 103 | BRAKE CALIPER, REAR | - | |
| - | 46 71 7 726 491 | TRAPEZOIDAL SCREW - M8X25-10.9-SI | - | |
| 5 | 34 21 7 660 281 | SET: OF BRAKE PADS, SINTERED METAL - D=26/28MM | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 5 | - | ||
34 21 2 335 465 | SET: SET, BRAKE PADS, ORGANICAlternative for position 5 | - | ||
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 5 | - | ||
| 6 | 34 21 7 663 749 | SUPPORT PLATE | - | |
| 7 | 34 21 7 671 876 | MOUNTING PARTS SET | - | |
| 8 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | - | |
| 9 | 34 21 2 314 001 | 34 21 2 314 001 | - | |
| 10 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 11 | 34 21 7 674 607 | SET OF BRAKE CALIPER PISTON SEALS - D=28MM | - | |
| 12 | 36 31 7 678 083 | OVAL HEAD SCREW - M5X10-10.9 ZNS3 | - | |
| 13 | 34 51 7 666 436 | WHEELSPEED SENSOR (to 08/06) | - | |
34 52 7 677 824 | WHEELSPEED SENSOR (08/06 to 08/22)Alternative for position 13 | - | ||
34 52 1 690 046 | WHEEL SPEED SENSOR (from 08/06)Alternative for position 13 | - | ||
| 15 | 07 11 9 905 198 | O-RING - 11,3X2,2 (to 08/06) | - | |
| 16 | 34 52 7 675 285 | HOLDER | - | |
| 17 | 36 31 7 678 083 | OVAL HEAD SCREW - M5X10-10.9 ZNS3 | - | |
| 18 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM | - | |
| 19 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | - | |
| 20 | 34 21 2 330 312 | REPAIR KIT, RUBBER COVER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
