R1200GS 05-07 (K25) | Brakes

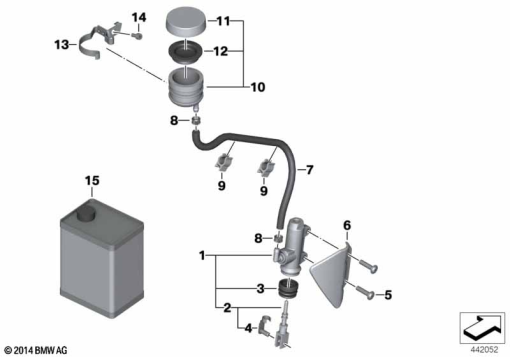

REAR BRAKE MASTER CYLINDER W CONTAINER
Diagram #34_1846 | 27 parts | 11 available in shop
100%
Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 7 693 841 | BRAKE MASTER CYLINDER - D=14,29/L=67MM | 1 | |
| 1 | 34 31 7 699 574 | BRAKE MASTER CYLINDER - D=14MM | 1 | |
| 1 | 34 31 7 699 574 | BRAKE MASTER CYLINDER - D=14MM | 1 | |
| 2 | 34 31 7 680 852 | PRESSURE ROD, MASTER CYLINDER - L=67MM | 1 | |
| – | 34 31 7 693 717 | BRAKE MASTER CYLINDER - D=13MM | 1 | |
| – | 34 31 7 693 841 | BRAKE MASTER CYLINDER - D=14,29/L=67MM | 1 | |
| 2 | 34 31 7 692 792 | PRESSURE ROD, MASTER CYLINDER | 1 | |
| – | 34 31 7 699 574 | BRAKE MASTER CYLINDER - D=14MM | 1 | |
| 3 | 34 31 2 333 518 | RUBBER BOOT | 1 | |
| – | 34 31 7 693 841 | BRAKE MASTER CYLINDER - D=14,29/L=67MM | 1 | |
| 3 | 34 31 7 692 791 | RUBBER BOOT | 1 | |
| – | 34 31 7 699 574 | BRAKE MASTER CYLINDER - D=14MM | 1 | |
| 4 | 07 12 9 934 961 | PIN - 6X12 | 1 | |
| 5 | 35 21 7 685 343 | OVAL HEAD SCREW - M6X20 MK | 1 | |
| 6 | 34 31 7 673 520 | COVER | 1 | |
| 7 | 34 32 2 314 742 | HOSE, BULK - 6X10 (meter) | 1 | |
| 8 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | 1 | |
| 9 | 12 52 1 733 330 | CABLE HOLDER - D=14,3 | 1 | |
| 10 | 34 31 2 314 082 | EXPANSION TANK | 1 | |
| 11 | 34 31 2 314 091 | COVER | 1 | |
| 12 | 34 31 2 314 092 | RUBBER COVER | 1 | |
| 13 | 34 31 7 666 931 | HOLDER | 1 | |
| 14 | 34 31 7 684 537 | ISA SCREW - M6X10 | 1 | |
| 15 | 83 13 2 467 961 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 10/07) | 1 | |
| 15 | 83105A87361 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML | 1 | |
| 15 | 83135A824F1 | BRAKE FLUID DOT4, LOW-VISCOSITY EU - 60L | 1 | |
| 15 | 83 13 2 184 843 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1000ML, TU | 1 |
