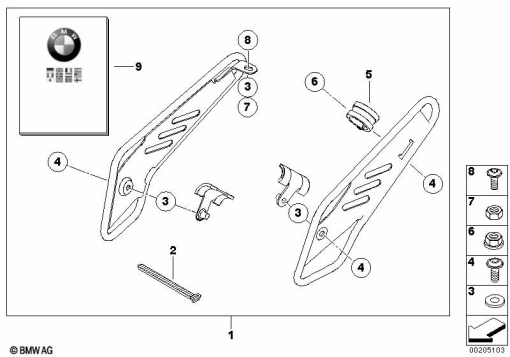

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 25 7 728 715 | SET: KIT, FRAME GUARD | 1 | |
| 2 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | 1 | |
| 3 | 07 11 9 904 825 | WASHER - 9X5,3X1-200 HV | 1 | |
| 3 | 07 11 9 905 218 | WASHER - 6-200 HV-A4 | 1 | |
| 3 | 07 11 9 905 218 | WASHER - 6-200 HV-A4 | 1 | |
| 4 | 06 32 7 651 204 | FILLISTER HEAD SCREW - M6X16-A2-80 | 1 | |
| 5 | 16 13 7 674 595 | PIPE CLAMP - D=25 | 1 | |
| 6 | 07 12 9 905 373 | HEX NUT - M6-A2-70 | 1 | |
| 7 | 07 12 9 902 975 | HEX NUT - AM5-8-ZNS3 | 1 | |
| 8 | 07 12 9 903 324 | ISA SCREW - M5X16-A2-70 | 1 | |
| 9 | 01 29 7 701 941 | INSTALLATION INSTRUCTIONS FRAME GUARD | 1 |
