R1200GS 05-07 (K25) | Accessories
HANDLEBAR WITH BRACE

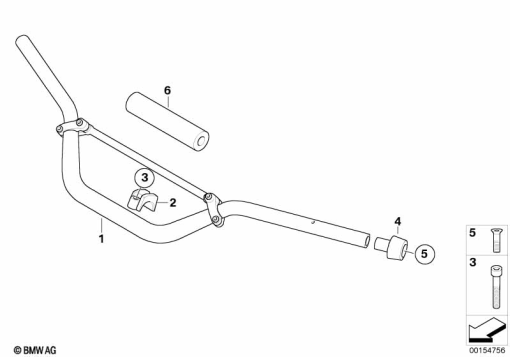

Diagram #77_0914 | 10 parts | 1 available in shop
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 7 674 918 | HANDLEBAR WITH BRACE (to 08/06) | 1 | |
| 1 | 32 71 7 703 703 | HANDLEBAR WITH BRACE (from 08/06) | 1 | |
| 2 | 32 71 7 664 356 | CLAMPING SUPPORT - D=28,5MM | 1 | |
| 3 | 07 12 9 906 204 | ASA-BOLT - M8X30-10.9 | 1 | |
| 4 | 32 71 7 673 846 | HANDLEBAR VIBRATION ABSORBER - 300G | 1 | |
| 5 | 32 71 7 717 802 | COUNTERSUNK HEAD SCREW - M12X1,5X80-MKL | 1 | |
| 6 | 46 63 7 706 632 | COVER FOR HANDLEBAR TUBE, BLACK-WHITE (to 08/06) | 1 | |
| 6 | 46 63 7 706 633 | COVER, HANDLEBAR TUBE, RED-BLACK (to 08/06) | 1 | |
| 6 | 46 63 7 696 173 | COVER FOR HANDLEBAR TUBE, BLACK-WHITE (from 08/06) | 1 | |
| 6 | 46 63 7 696 174 | COVER, HANDLEBAR TUBE, RED-BLACK (from 08/06) | 1 |
