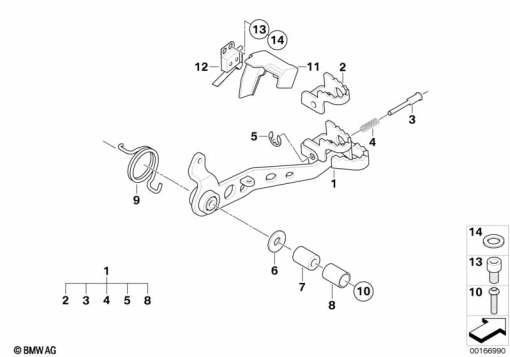

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 7 692 671 | BRAKE PEDAL | - | |
| 2 | 35 21 7 693 227 | STEP PIECE | - | |
| 3 | 35 21 7 690 248 | 0.02 | - | |
| 4 | 35 21 7 690 250 | SPRING | - | |
| 5 | 07 11 9 905 594 | CIRCLIP | - | |
| 6 | 35 21 2 335 498 | WASHER - 8,4 | - | |
| 7 | 35 21 2 345 837 | BUSHING | - | |
| 8 | 35 21 1 450 231 | BUSHING | - | |
| 9 | 35 21 7 653 583 | RETAINER SPRING | - | |
| 10 | 34 11 7 672 808 | OVAL HEAD SCREW - ISA M8X35 MK | - | |
| 11 | 35 21 7 652 212 | STOP LIGHT SWITCH COVER | - | |
| 12 | 61 31 2 305 933 | BRAKE LIGHT SWITCH FOOT BRAKE - L=910MM | - | |
| 13 | 07 11 9 904 303 | FILLISTER-HEAD SCREW - M5X10-8.8-ZNNIV | - | |
| 14 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | - |
