R1150GS ADV (R21A) | Wheels

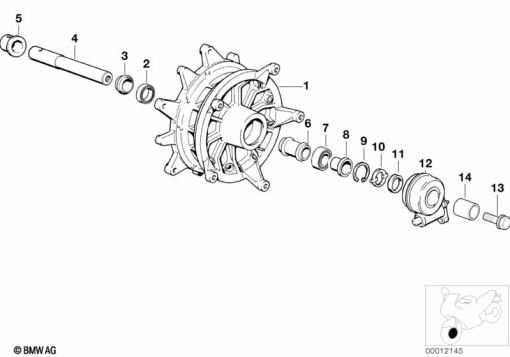

WHEEL HUB MOUNTING PARTS FRONT
Diagram #36_0414 | 13 parts | 4 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 522 409 | WHEEL HUB, FRONT (to 09/02) | 1 | |
| 2 | 36 31 8 534 835 | GROOVED BALL BEARING - 20X47X14 | 1 | |
| – | Ball bearing 6204 - 2RS1. | Ball bearing 6204 - 2RS1. | 1 | |
| 3 | 36 31 2 312 513 | BUSH | 1 | |
| 4 | 36 31 2 335 577 | QUICK-RELEASE AXLE | 1 | |
| 6 | 36 31 2 312 485 | PIPE - L=58MM | 1 | |
| 7 | 36 31 2 310 973 | GROOVED BALL BEARING - 25X52X20,6 | 1 | |
| 8 | 36 31 2 312 285 | BUSH LEFT | 1 | |
| 9 | 36 31 2 310 971 | LOCK RING - 52X2 | 1 | |
| 10 | 36 31 2 312 286 | DRIVING DOG | 1 | |
| 11 | 36 31 2 312 287 | SHAFT SEAL | 1 | |
| 12 | 62 12 2 306 287 | SPEEDOMETER DRIVE - I=3,0 | 1 | |
| 13 | 36 31 7 705 315 | HEX BOLT - M14X1.5 | 1 |
