Parts List (12)

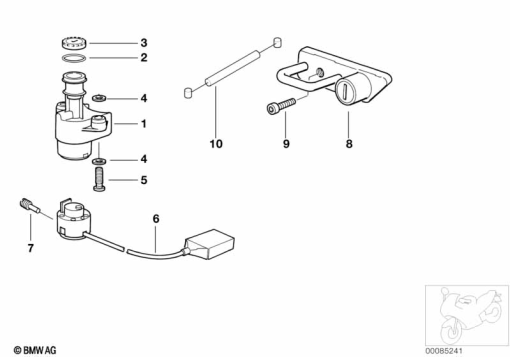

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 25 2 313 183 | STEERING LOCK HOUSING | - | |
| 2 | 51 25 2 313 185 | O-RING | - | |
| 3 | 51 25 2 313 184 | 51 25 2 313 184 | - | |
| 4 | 07 11 9 904 826 | WASHER - 8-200-ZNS3 | - | |
| 5 | 51 25 7 711 811 | LOCK SCREW - M8X31-MK-ZNS3 | - | |
| 6 | 61 32 2 306 743 | IGNITION/LIGHT SWITCH - L=600MM | - | |
31 32 2 305 742 | can be used to replace 743, wiring is longerAlternative for position 6 | - | ||
| 7 | 51 25 9 062 821 | STUD BOLT - M3X5 | - | |
| 8 | 51 25 7 653 645 | BENCH SEAT HELMET LOCK WITH BOWDEN CABLE | - | |
51 25 7 664 848 | BENCH SEAT HELMET LOCKAlternative for position 8 | - | ||
| 9 | 51 25 7 655 829 | TORX BOLT - M6X16 | - | |
| 10 | 51 25 7 664 847 | BOWDEN CABLE - 365MM | - |
