R1150GS ADV (R21A) | Transmission

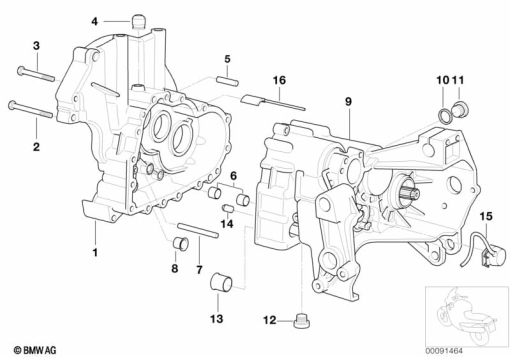

TRANSMISSION HOUSING/MOUNTING PARTS
Diagram #23_0871 | 22 parts | 1 available in shop
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 11 2 332 967 | SILVER HOUSING COVER | 1 | |
| 1 | 23 11 2 333 072 | HOUSING COVER BLACK | 1 | |
| 2 | 23 00 2 330 260 | HEX BOLT - M6X65 | 1 | |
| 3 | 23 00 2 330 259 | HEX BOLT - M6X50 | 1 | |
| 4 | 23 00 7 693 739 | BREATHER (to 09/07) | 1 | |
| 4 | 33 74 8 864 458 | Breather | 1 | |
| 4 | 33 74 8 864 458 | BREATHER | 1 | |
| 5 | 23 00 2 330 153 | DOWEL PIN - 8M6X24 | 1 | |
| 6 | 23 11 2 330 132 | BUSH | 1 | |
| 7 | 23 00 2 330 154 | PIN - 6 X 60 | 1 | |
| 8 | 23 00 2 330 155 | COLLAR BUSH | 1 | |
| 9 | 23 00 7 653 797 | TRANSMISSION HOUSING, SILVER | 1 | |
| 9 | 23 11 7 653 800 | TRANSMISSION HOUSING, BLACK | 1 | |
| 10 | 07 11 9 963 300 | GASKET RING - A18X22-AL | 1 | |
| 11 | 07 11 9 905 428M | DRAIN PLUG W/ MAGNET | 1 | |
| 11 | 07 11 9 905 428 | SCREW PLUG - M18X1,5-ZNNIV | 1 | |
| 12 | 11 13 2 330 145 | SCREW PLUG, MAGNETIC - M26X1,5 | 1 | |
| 13 | 23 11 2 330 133 | COLLAR BUSH | 1 | |
| 14 | 23 21 2 330 142 | THRUST ADAPTER, SPRING-TYPE | 1 | |
| 15 | 23 14 2 333 154 | GEAR POSITION INDICATOR SWITCH | 1 | |
| 1 | 61 31 2 333 171 | FUSE | 1 | |
| 16 | 23 00 2 333 147 | VENTILATION, GEARBOX | 1 |
