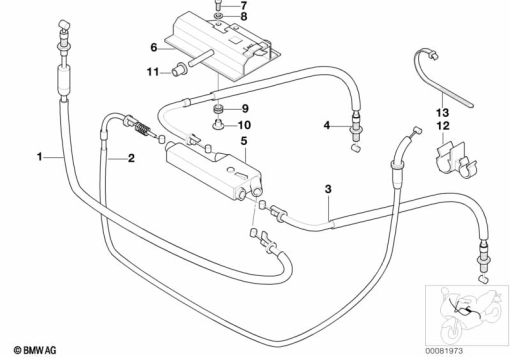

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 73 7 692 561 | THROTTLE CABLE - L=965MM (to 12/04) | - | |
32 72 7 691 990 | SET: REP.KIT ACCELERATOR CABLE DEFLECTION - D=45MM (to 12/04)Alternative for position 1 | - | ||
32 73 7 692 561 | THROTTLE CABLE - L=965MM (from 12/04)Alternative for position 1 | - | ||
| 2 | 32 73 7 659 676 | CHOKE CABLE - L=1059MM | - | |
| 3 | 32 73 7 692 563 | BOWDEN CABLE, THROTTLE VALVE, LEFT - L=200MM | - | |
| 4 | 32 73 7 692 562 | BOWDEN CABLE, THROTTLE VALVE, RIGHT - L=140MM | - | |
| 5 | 13 54 7 657 001 | CABLE DISTRIBUTOR | - | |
| 12 | 16 13 1 465 119 | HOSE CLAMP | - | |
| 13 | 13 54 7 653 727 | HOSE CLAMP | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
