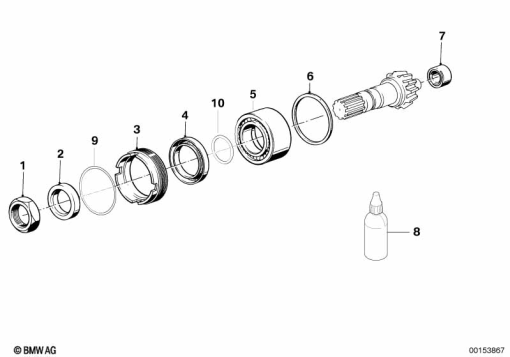

Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 12 1 450 497 | NUT - M24X1,5 | - | |
| 2 | 33 11 7 701 691 | COMPRESSION RING | - | |
| 3 | 33 11 2 333 120 | THREADED RING - M65X1,5 | - | |
| 4 | 33 11 7 665 838 | SHAFT SEAL - 35X47X7 | - | |
| 5 | 33 11 7 699 866 | AX BEARING - 62X25X25,4 | - | |
| 6 | 33 12 1 230 717 | SHIM - 1,500MM | - | |
33 12 1 230 718 | SHIM - 1,550MMAlternative for position 6 | - | ||
33 12 1 230 719 | SHIM - 1,600MMAlternative for position 6 | - | ||
33 12 1 230 720 | SHIM - 1,650MMAlternative for position 6 | - | ||
33 12 1 230 721 | SHIM - 1,700MMAlternative for position 6 | - | ||
33 12 1 230 722 | SHIM - 1,750MMAlternative for position 6 | - | ||
33 12 1 230 723 | SHIM - 1,800MMAlternative for position 6 | - | ||
33 12 1 230 724 | SHIM - 1,850MMAlternative for position 6 | - | ||
33 12 1 230 725 | SHIM - 1,900MMAlternative for position 6 | - | ||
33 12 1 230 726 | SHIM - 1,950MMAlternative for position 6 | - | ||
33 12 1 230 727 | SHIM - 2,000MMAlternative for position 6 | - | ||
33 12 1 230 728 | SHIM - 2,050MMAlternative for position 6 | - | ||
33 12 1 230 729 | SHIM - 2,100MMAlternative for position 6 | - | ||
33 12 1 230 730 | SHIM - 2,150MMAlternative for position 6 | - | ||
33 12 1 230 731 | SHIM - 2,200MMAlternative for position 6 | - | ||
33 12 1 230 732 | SHIM - 2,250MMAlternative for position 6 | - | ||
33 12 1 230 733 | SHIM - 2,300MMAlternative for position 6 | - | ||
33 12 1 230 734 | SHIM - 2,350MMAlternative for position 6 | - | ||
33 12 1 230 735 | SHIM - 2,400MMAlternative for position 6 | - | ||
33 12 1 230 736 | SHIM - 2,450MMAlternative for position 6 | - | ||
33 12 1 230 737 | SHIM - 2,500MMAlternative for position 6 | - | ||
| 7 | 33 12 1 236 998 | NEEDLE SLEEVE - 15X30X18 | - | |
| 8 | 33 11 2 328 736 | ADHESIVE LOCTITE 577 - 50ML | - |
