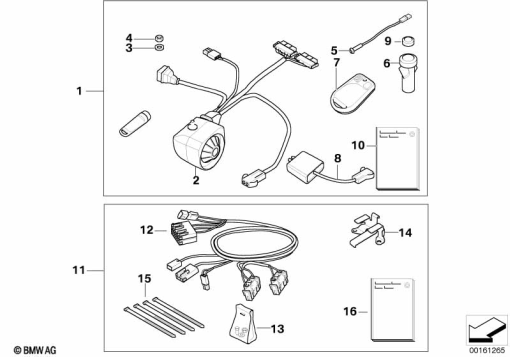

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 65 75 7 688 727 | SET: ALARM SYSTEMS - 5.1 (from 12/02) | - | |
| 2 | 65 75 7 684 642 | CONTROL UNIT | - | |
| 3 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 3 | - | ||
| 4 | 07 12 9 903 343 | HEX NUT - M6-A2-70 | - | |
| 5 | 65 75 7 655 905 | LED DWA ALARM SYSTEM | - | |
| 7 | 65 75 1 696 869 | REMOTE CONTROL - 433MHZ | - | |
| 8 | 65 75 7 655 901 | MOTION SENSOR | - | |
| 9 | 65 75 2 337 504 | BATTERY - 3V | - | |
| 10 | 01 29 7 685 213 | OPERATING INSTRUCTIONS, ALARM SYSTEMS - 5.1 | - | |
| 11 | 71 60 7 688 742 | SET: THEFT ALARM, MOUNTING PARTS - DWA 5.1 | - | |
| 15 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 16 | 01 29 7 680 958 | INSTALL.INSTRUCTIONS DWA 5.1 - R1150GS | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
