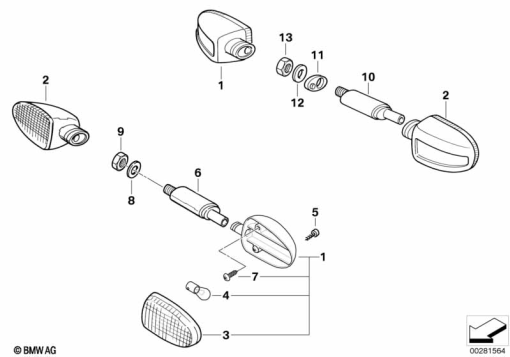

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 13 2 306 493 | TURN INDICATOR | - | |
63 13 7 658 963 | TURN SIGNAL LAMP, WHITEAlternative for position 1 | - | ||
| 2 | 63 13 2 306 494 | TURN INDICATOR | - | |
63 13 7 658 964 | TURN SIGNAL LAMP, WHITEAlternative for position 2 | - | ||
| 3 | 63 13 2 306 293 | LAMP LENS | - | |
63 13 7 658 957 | HEADLIGHT LENS, WHITEAlternative for position 3 | - | ||
| 4 | 63 21 7 160 789 | BULB - P21W/12V/21W | - | |
63 21 7 176 025 | LONGLIFE BULB, YELLOW - PY21W 12V 21WAlternative for position 4 | - | ||
| 5 | 63 13 2 306 499 | SCREW - 3,5X12 | - | |
| 6 | 63 13 2 306 318 | TURN INDICATOR HOLDER - BLACK | - | |
| 7 | 63 13 2 306 499 | SCREW - 3,5X12 | - | |
| 8 | 07 11 9 901 766 | WASHER - A13/HV-ZNS (to 09/03) | - | |
07 11 9 904 119 | WASHER - 12-300 HV-ZNS3Alternative for position 8 | - | ||
| 9 | 07 11 9 921 100 | HEX NUT - M12 | - | |
| 10 | 63 13 2 306 318 | TURN INDICATOR HOLDER - BLACK | - | |
| 11 | 63 13 2 306 038 | SPACER BUSH | - | |
| 12 | 07 11 9 901 766 | WASHER - A13/HV-ZNS (to 09/03) | - | |
07 11 9 904 119 | WASHER - 12-300 HV-ZNS3Alternative for position 12 | - | ||
| 13 | 07 11 9 921 100 | HEX NUT - M12 | - |
