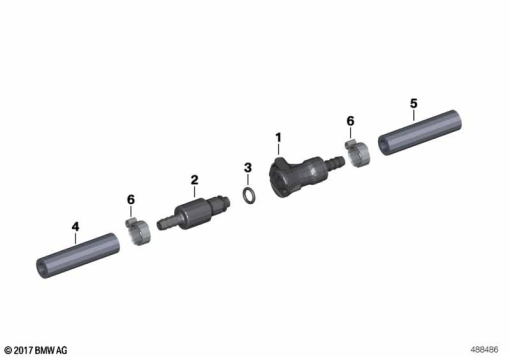

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 31 7 659 120 | CONNECTING SLEEVE | - | |
| 4 | 16 12 1 176 918 | HOSE CLAMP - 13,1-15,3 | - | |
| - | 13 53 7 700 800 | QUICK-RELEASE COUPLING - 180° | - | |
| 4 | 16 12 1 176 918 | HOSE CLAMP - 13,1-15,3 | - | |
| - | 16 12 1 176 918 | HOSE CLAMP - 13,1-15,3 | - | |
| - | 13 53 7 700 797 | O-RING | - | |
| 4 | 13 31 7 688 226 | INLET FUEL HOSE - L=135MM | - | |
| 5 | 13 31 7 688 227 | RETOUR FUEL HOSE - L=120 | - | |
13 53 7 563 456 | FUEL HOSE - 8X13MMX1000 (meter)Alternative for position 5 | - | ||
| 6 | 16 12 1 176 918 | HOSE CLAMP - 13,1-15,3 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
