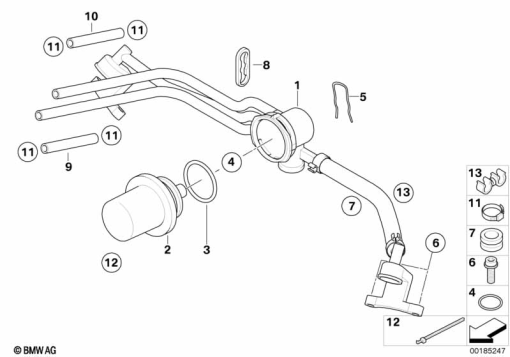

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 53 7 664 857 | FUEL DISTRIBUTOR | - | |
| 2 | 13 53 1 465 106 | PRESSURE REGULATOR | - | |
| - | 13 53 1 465 193 | O-RING - 5X1,5 | - | |
| 3 | 13 53 1 341 067 | O-RING - 20X2,5 | - | |
| 4 | 13 53 1 465 193 | O-RING - 5X1,5 | - | |
| 5 | 13 53 1 341 694 | CLAMPING SPRING | - | |
| 6 | 07 12 9 903 041 | FILLISTER HEAD WITH WASHER - M5X16 | - | |
| 7 | 13 53 1 341 283 | GROMMET | - | |
| 8 | 13 53 1 341 284 | GROMMET, RIGHT | - | |
| 9 | 13 31 7 688 233 | RETOUR FUEL HOSE - L=105 | - | |
| 11 | 16 12 1 176 918 | HOSE CLAMP - 13,1-15,3 | - | |
| 12 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
