R1150GS ADV (R21A) | Fuel Preparation
INTAKE SILENCER / FILTER CARTRIDGE INTAKE SILENCER / FILTER CART

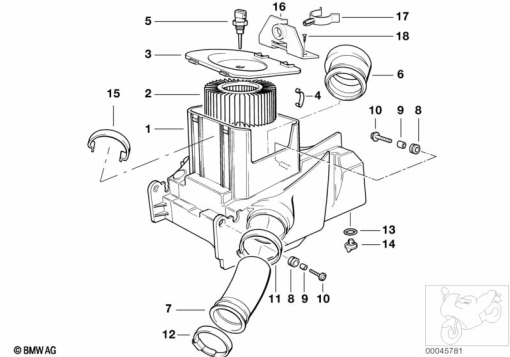

Diagram #13_0842 | 19 parts
100%
Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 1 341 527 | AIR CLEANER HOUSING | - | |
| 2 | 13 71 1 341 528 | AIR FILTER ELEMENT | - | |
| 3 | 13 71 7 655 663 | COVER F SUCTION FILTER | - | |
| - | 13 71 1 465 048 | SCREW | - | |
| 5 | 13 62 1 465 108 | INTAKE AIR TEMPERATURE SENSOR | - | |
| 6 | 13 71 1 341 317 | RUBBER GROMMET | - | |
| 7 | 13 71 1 341 405 | INTAKE MANIFOLD LEFT | - | |
13 71 1 341 406 | INTAKE MANIFOLD RIGHTAlternative for position 7 | - | ||
| 8 | 07 14 7 267 586 | RUBBER GROMMET | - | |
| 9 | 31 42 1 236 241 | BUSH | - | |
| 10 | 18 22 1 464 332 | FILLISTER HEAD SCREW | - | |
| 11 | 13 31 1 460 941 | HOSE CLAMP - D=66 | - | |
| 12 | 13 72 1 338 650 | HOSE CLAMP - D=58MM | - | |
| 13 | 13 71 1 340 778 | O-RING | - | |
| 14 | 13 71 1 340 752 | BLIND PLUG | - | |
| 15 | 13 71 1 341 920 | CLAMP | - | |
| 16 | 61 13 2 350 633 | DIAGNOSIS PLUG BRACKET | - | |
| 17 | 11 53 1 726 298 | DIAGNOSIS PLUG BRACKET | - | |
| 18 | 07 12 9 902 322 | SCREW FOR THERMOPLASTIC PLASTICS - TS4X16 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
