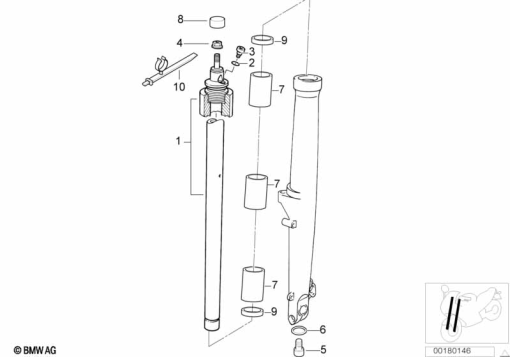

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 2 338 201 | STANCHION - L=610MM | 1 | |
| 2 | 31 42 2 330 054 | O-RING | 1 | |
| 3 | 07 11 9 919 373 | FILLISTER-HEAD SCREW | 1 | |
| 3 | 07 11 9 919 752 | FILLISTER-HEAD SCREW - M4X10-8.8 ZN | 1 | |
| 4 | 31 42 7 684 743 | HEX NUT WIHT FLANGE - M10X1,25-ZNS3 | 1 | |
| 5 | 31 42 2 312 711 | FILLISTER-HEAD SCREW - M8X18-8.8-ZNS3 | 1 | |
| 6 | 31 42 2 312 714 | O-RING | 1 | |
| 7 | 31 42 2 311 985 | PIPE | 1 | |
| 8 | 31 42 2 330 541 | CAP - D=35MM | 1 | |
| 9 | 31 42 2 311 986 | BUSH | 1 |
