R1150GS ADV (R21A) | Frame, Fairing, Cases
FOOTPEG PLATE/REAR FOOTPEG

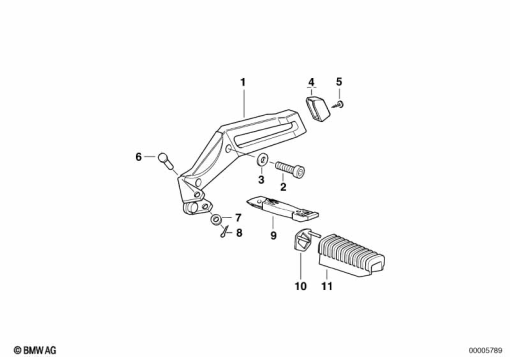

Diagram #46_0588 | 15 parts | 5 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 314 761 | FOOTREST PLATE, LEFT - BLACK | 1 | |
| 1 | 46 71 2 314 762 | FOOTPEG PLATE RIGHT - BLACK | 1 | |
| 2 | 07 12 9 905 214 | ISA SCREW - M8X16-8.8-ZNS3 | 1 | |
| 3 | 07 11 9 904 826 | Washer | 1 | |
| 3 | 07 11 9 931 697 | WASHER - 8,4 | 1 | |
| 4 | 46 54 2 316 012 | 0.03 | 1 | |
| 5 | 07 11 9 900 439 | SELF TAPPING SCREW - CM4X10 | 1 | |
| 6 | 07 11 9 900 584 | PIN - 8X45 | 1 | |
| 7 | 07 11 9 904 826 | Washer | 1 | |
| 7 | 07 11 9 931 697 | WASHER - 8,4 | 1 | |
| 8 | 07 11 9 905 230 | SPLIT PIN - 2X16 | 1 | |
| 9 | 46 71 2 310 403 | FOOTREST, REAR LEFT | 1 | |
| 9 | 46 71 2 310 404 | FOOTREST, REAR RIGHT | 1 | |
| 10 | 46 71 7 687 107 | THRUST WASHER, LEFT | 1 | |
| 11 | 46 71 2 310 401 | FOOTREST RUBBER | 1 |
