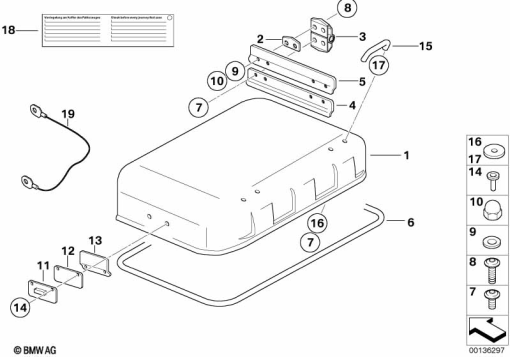

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 664 533 | COVER, LEFT, ALUMINIUM CASE | - | |
71 60 7 664 534 | COVER, RIGHT, ALUMINIUM CASE/TOP CASEAlternative for position 1 | - | ||
| 2 | 71 60 7 668 676 | BASE | - | |
| 3 | 71 60 7 664 529 | HINGE | - | |
| 4 | 71 60 7 668 677 | REINFORCEMENT PLATE, BOTTOM | - | |
| 5 | 71 60 7 668 678 | REINFORCEMENT PLATE, TOP | - | |
| 6 | 71 60 7 664 537 | GASKET | - | |
| 7 | 71 60 7 672 260 | OVAL HEAD SCREW - M5X12 | - | |
| 8 | 71 60 7 672 261 | OVAL HEAD SCREW - M5X16 | - | |
| 9 | 71 60 7 672 255 | WASHER - A5,3 | - | |
| 10 | 71 60 7 672 266 | CAP NUT - M5 | - | |
| 11 | 46 54 2 303 642 | HOOK | - | |
| 12 | 71 60 7 668 674 | BASE | - | |
| 13 | 71 60 7 668 675 | REINFORCEMENT PLATE | - | |
| 14 | 71 60 7 672 264 | BLIND RIVET - 3,2X17 | - | |
| 15 | 71 60 7 664 535 | FIXING BOW | - | |
| 16 | 07 11 9 936 406 | WASHER - 5,3 | - | |
| 17 | 71 60 7 668 673 | WASHER | - | |
| 18 | 71 60 7 668 679 | LABEL | - | |
| 19 | 71 60 7 688 305 | SET: HOLDING STRAP KIT, ALUMINIUM CASE - L=543MM | - |
