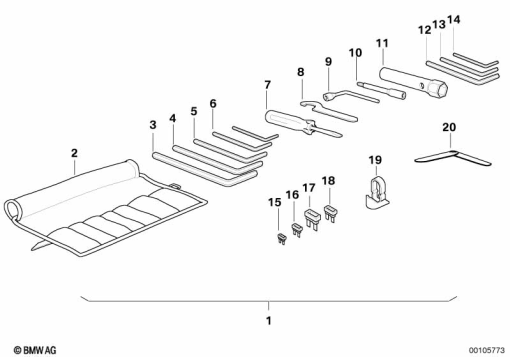

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 11 7 665 374 | CAR TOOL - R1150GS ADV (to 10/04) | - | |
71 11 7 691 427 | SET: CAR TOOL (from 10/04)Alternative for position 1 | - | ||
| 2 | 51 16 2 309 916 | TOOL BAG (to 10/04) | - | |
71 11 7 692 709 | TOOL BAG (from 10/04)Alternative for position 2 | - | ||
| 4 | 07 11 9 908 036 | INNER HEX SPANNER - BLACK6 (from 06/12) | - | |
| 5 | 07 11 9 906 020 | INNER HEX SPANNER - BLACK5 (to 10/04) | - | |
| 6 | 07 11 9 906 008 | INNER HEX SPANNER - BLACK3 | - | |
| 7 | 71 11 1 179 629 | SCREWDRIVER | - | |
| 8 | 71 11 2 316 019 | HOOK WRENCH (to 10/04) | - | |
51 16 2 313 975 | HOOK WRENCH (from 10/04)Alternative for position 8 | - | ||
| 9 | 71 11 1 240 891 | SOCKET WRENCH - 17 (to 10/04) | - | |
| 11 | 71 11 2 316 193 | SPARK PLUG WRENCH - 16 (to 10/04) | - | |
| 12 | 71 11 2 347 278 | TORX WRENCH - T25 | - | |
| 15 | 61 13 8 364 594 | FUSE - 4A | - | |
| 16 | 61 13 1 372 524 | FUSE BROWN - 7,5A | - | |
| 17 | 61 13 1 372 526 | FUSE BLUE - 15A | - | |
| 18 | 61 13 1 372 525 | FUSE RED - 10A | - | |
| 19 | 12 12 2 306 064 | ADAPTER (to 10/04) | - | |
| 20 | 71 11 2 316 483 | GAUGE - 0,45 - 0,55 MM (to 10/04) | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
