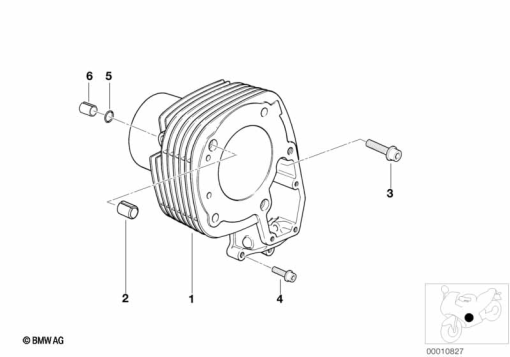

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 7 667 111 | CYLINDER LEFT - A/B (to 12/02) | 1 | |
| 1 | 11 11 7 667 112 | CYLINDER RIGHT - A/B (to 12/02) | 1 | |
| 2 | 11 12 1 726 241 | DOWEL - D=12,5MM (to 12/02) | 1 | |
| 3 | 07 11 9 919 820 | FILLISTER HEAD WITH WASHER - M8X55-Z3-8.8 ZN (to 12/02) | 1 | |
| 3 | 07 11 9 920 137 | FILLISTER HEAD WITH WASHER - M8X30-Z3-8.8-ZN (to 12/02) | 1 | |
| 4 | 07 11 9 906 058 | FILLISTER HEAD WITH WASHER - M6X35-ZNNIV SI (to 12/02) | 1 | |
| 4 | 11 11 7 658 018 | FILLISTER-HEAD SCREW WITH COATING - M6X35-Z3-8.8-ZN (to 12/02) | 1 | |
| 5 | 11 11 1 342 242 | O-RING - 10,5X1,5 (to 12/02) | 1 | |
| 6 | 11 12 1 726 238 | DOWEL - D=10,5MM (to 12/02) | 1 |
