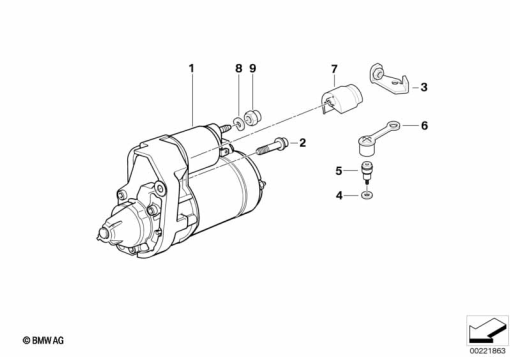

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 41 2 306 700 | STARTER | - | |
12 41 2 306 700R | NIPPONDENSO REPLACEMENT STARTERAlternative for position 1 | - | ||
| 2 | 07 12 9 904 552 | ISA SCREW - M8X40-Z1 | - | |
| 3 | 61 13 7 671 355 | HOLDER | - | |
| 4 | 07 11 9 931 050 | WASHER - 6,4 | - | |
| 5 | 61 13 7 671 354 | EARTH PIN - M6X10 | - | |
| 6 | 61 13 7 672 395 | PROTECTION CAP | - | |
| 7 | 12 41 7 696 465 | TWIST PROTECTION | - | |
12415B40649 | TWIST PROTECTIONAlternative for position 7 | - | ||
| 8 | 12 41 1 244 623 | SPRING WASHER | - | |
| 9 | 12 41 1 244 622 | HEX NUT - M8-8 CU | - |
