R1150GS ADV (R21A) | Engine Electrics

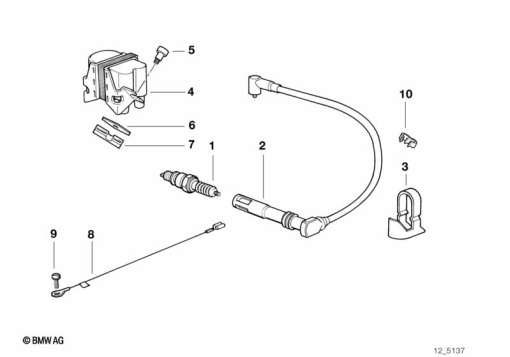

IGNITION SYSTEM-PLUG/PLUG/IGNITION COIL
Diagram #12_1012 | 12 parts
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 12 7 653 771 | SPARK PLUG - NGK BKR7EKC (to 12/02) | - | |
| 2 | 12 12 1 342 641 | IGNITION WIRE (to 12/02) | - | |
12 12 1 342 641 | IGNITION WIREAlternative for position 2 | - | ||
| 3 | 12 12 2 306 064 | ADAPTER (to 12/02) | - | |
| 4 | 12 13 1 341 978 | IGNITION COIL (to 12/02) | - | |
12 13 1 341 978 | IGNITION COILAlternative for position 4 | - | ||
| 5 | 12 13 2 306 157 | SCREW (to 12/02) | - | |
12 13 2 306 157 | SCREWAlternative for position 5 | - | ||
| 6 | 12 13 2 306 158 | PLATE (to 12/02) | - | |
12 13 2 306 158 | PLATEAlternative for position 6 | - | ||
| 7 | 07 11 9 900 510 | WAVE WASHER - B7 (to 12/02) | - | |
07 11 9 900 510 | WAVE WASHER - B7Alternative for position 7 | - |
