R1150GS ADV (R21A) | Electrical System

BATTERY, MAINTENANCE-FREE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #61_2311 | 11 parts

100%

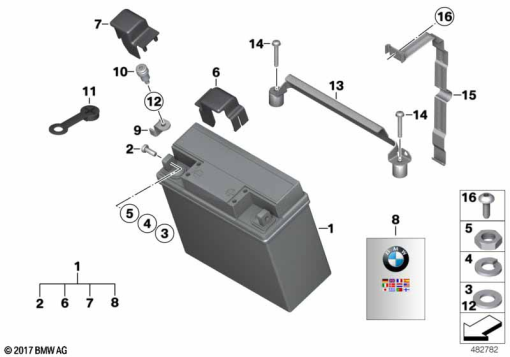

R1150GS ADV (R21A) BATTERY, MAINTENANCE-FREE exploded view parts diagram

Parts List (11)

#	Part Number	Description	Qty
1	61 21 2 346 800	BATTERY, MAINTENANCE-FREE - 12V 19AH	-
2	61 21 7 914 822	SET: SCREW SET	-
3	61 21 7 914 822	SET: SCREW SET	-
4	61 21 7 914 822	SET: SCREW SET	-
5	61 21 7 914 822	SET: SCREW SET	-
6	61 21 1 459 099	COVERING CAP - + POL	-
8	01 40 2 306 238	INSTRUCTIONS, MAINTENANCE-FREE BATTERY	-
9	61 21 7 671 334	EXTENSION-ANGLE PIECE FOR BATTERY	-
10	61 13 7 671 354	EARTH PIN - M6X10	-
11	61 13 7 672 395	PROTECTION CAP	-
12	07 11 9 931 050	WASHER - 6,4	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
