R1150GS ADV (R21A) | Cooling
OIL COOLER/OIL COOLING PIPE

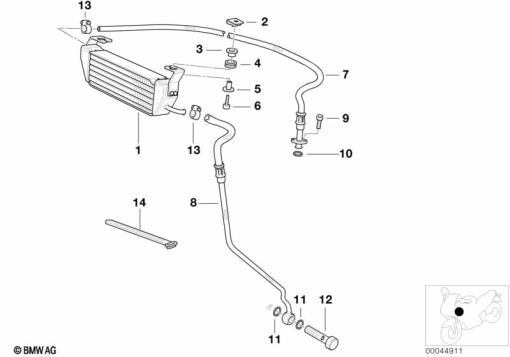

Diagram #17_0176 | 15 parts
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 21 1 342 924 | OIL COOLER | - | |
| 2 | 07 12 9 904 886 | CAGE NUT - M6-6-ZNS3 | - | |
| 3 | 46 63 1 455 425 | NUT HOLDER | - | |
| 4 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 5 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 6 | 11 14 1 460 678 | FILLISTER-HEAD SCREW - M6X25 | - | |
| 7 | 17 22 1 342 926 | OIL COOLING PIPE INLET - BLACK | - | |
| 8 | 17 22 1 342 927 | OIL COOLING PIPE OUTLET - SILVER | - | |
17 22 1 342 928 | OIL COOLING PIPE OUTLET - BLACKAlternative for position 8 | - | ||
| 9 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
| 10 | 17 22 1 342 487 | O-RING - 19X4 | - | |
| 11 | 07 11 9 963 252 | GASKET RING - A16X20-AL | - | |
| 12 | 32 41 6 852 470 | HOLLOW BOLT - M16X28 | - | |
| 13 | 17 22 1 342 708 | CLAMP - FBS 19/12 | - | |
| 14 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | - |
