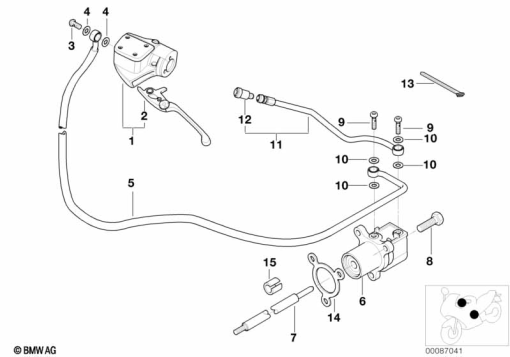

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 7 657 183 | CLUTCH CONTROL ASSEMBLY | - | |
| 2 | 32 72 7 657 147 | CLUTCH LEVER, ADJUSTABLE | - | |
| 3 | 34 32 2 331 539 | BANJO BOLT, CHROME - M10X1 | - | |
34 32 2 331 540 | BANJO BOLT, BLACK - M10X1Alternative for position 3 | - | ||
| 4 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 5 | 21 52 2 333 411 | CLUTCH LINE (to 09/03) | - | |
21 52 7 682 151 | CLUTCH CABLE, INPUT/OUTPUT CYLINDER - STAHLFLEX (from 09/03)Alternative for position 5 | - | ||
| - | 34 32 2 331 539 | BANJO BOLT, CHROME - M10X1 (from 09/03) | - | |
| 6 | 21 52 2 335 061 | CLUTCH SLAVE CYLINDER - D=24 | - | |
| 7 | 21 52 7 659 113 | ROD - L=270MM | - | |
| - | 23 21 1 230 440 | FELTRING | - | |
| 8 | 23 00 2 332 975 | FILLISTER-HEAD SCREW - M 6X18 | - | |
| 9 | 21 52 2 332 605 | HOLLOW BOLT - M6X17 | - | |
| 10 | 21 52 2 332 604 | GASKET RING - 6,2X9,9-AL | - | |
| 11 | 21 52 2 333 455 | CLUTCH VENT PIPE | - | |
| 12 | 32 72 2 333 158 | VENTILATION SCREW | - | |
| - | 34 21 2 330 310 | VENT SCREW - M10 | - | |
| 13 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 14 | 23 12 2 352 156 | GASKET | - | |
| 15 | 23 21 1 230 440 | FELTRING | - |
