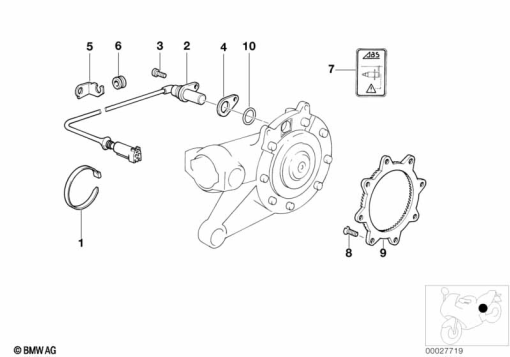

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 2 | 34 52 2 331 287 | SENSOR (to 09/02) | 1 | |
| 2 | 34 32 7 670 028 | ROTATIONAL-SPEED SENSOR, ABS REAR (from 09/02) | 1 | |
| 3 | 34 51 1 458 494 | FILLISTER-HEAD SCREW - M5X14 | 1 | |
| 4 | 34 51 2 314 852 | SHIM - 0,050MM | 1 | |
| 4 | 34 51 2 314 853 | SHIM - 0,100MM | 1 | |
| 4 | 34 51 2 314 854 | SHIM - 0,200MM | 1 | |
| 4 | 34 51 2 314 855 | SHIM - 0,300MM | 1 | |
| 4 | 34 51 2 314 856 | SHIM - 0,400MM | 1 | |
| 4 | 34 51 2 314 857 | SHIM - 0,500MM | 1 | |
| 4 | 34 51 2 314 858 | SHIM - 1,000MM | 1 | |
| 4 | 34 51 2 351 536 | SHIM - 0,070MM | 1 | |
| 5 | 34 51 2 311 021 | BRACKET | 1 | |
| 6 | 34 52 2 305 087 | RUBBER GROMMET | 1 | |
| 7 | 71 21 2 335 381 | ABS LABEL (to 09/02) | 1 | |
| 8 | 34 51 2 314 936 | COUNTERSUNK HEAD SCREW - M5X12 (to 09/02) | 1 | |
| 8 | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 (from 09/02) | 1 | |
| 9 | 34 51 2 314 169 | SENSOR RING (to 09/02) | 1 | |
| 9 | 34 51 7 652 085 | SENSOR RING, REAR (from 09/02) | 1 | |
| 10 | 12 14 1 727 220 | O-RING - 18X2 | 1 |
