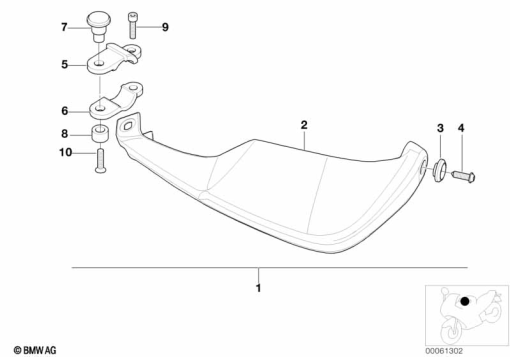

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 32 71 2 328 693 | HAND GUARD, BLACK, LEFT | - | |
46 63 2 328 694 | HAND GUARD, BLACK, RIGHTAlternative for position 2 | - | ||
| 3 | 32 71 2 328 841 | CLAMPING BUSH | - | |
| 4 | 07 11 9 904 901 | COUNTERSUNK HEAD SCREW - M8X40 | - | |
| 5 | 32 71 7 655 489 | PIPE CLAMP, TOP | - | |
| 6 | 32 71 7 655 490 | PIPE CLAMP, BOTTOM | - | |
| 7 | 32 71 7 655 491 | THREADED BUSH | - | |
| 8 | 32 71 7 656 995 | SPACER BUSH | - | |
| 9 | 07 12 9 905 126 | ISA SCREW - M6X30 | - | |
| 10 | 46 63 7 653 686 | OVAL HEAD SCREW - M6X30MK | - |
