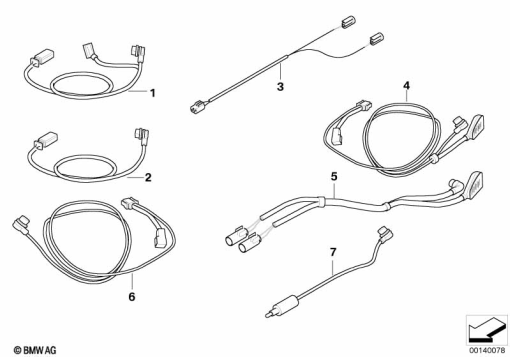

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 4 | 71 60 7 687 705 | VOLTAGE SUPPLY INTEGRATED - II | - | |
| - | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| - | 01 29 7 671 705 | INST. INSTR., VOLTAGE SUPPLY, NAVI - GARMIN | - | |
| - | 01 29 7 685 957 | INST. INSTR. VOLTAGE SUPPLY NAVIGATOR II | - | |
| 6 | 71 60 7 670 585 | SET: SET, VOLTAGE SUPPLY, INTEGRAL - I | - | |
| 8 | 71 60 7 669 694 | CONNECTION CABLE, NAVIGATOR HELMET | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
