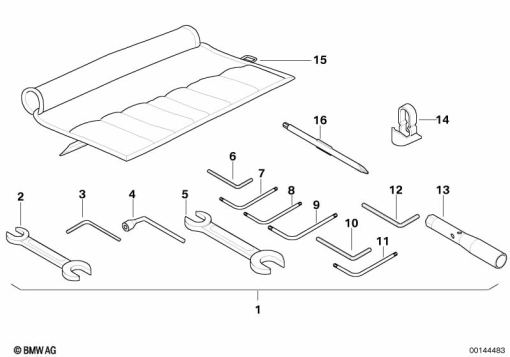

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 691 419 | CAR TOOL, SUPPLEMENTARY KIT - R1150 | - | |
| 2 | 71 11 1 112 893 | DOUBLE OPEN-END WRENCH - 8X10 | - | |
| 3 | 71 11 1 237 852 | INNER HEX SPANNER - BLACK4 | - | |
| 4 | 71 11 1 240 891 | SOCKET WRENCH - 17 | - | |
| 5 | 07 11 9 908 041 | DOUBLE OPEN-END WRENCH - 10X13 | - | |
| 6 | 07 11 9 906 008 | INNER HEX SPANNER - BLACK3 | - | |
| 7 | 71 11 2 328 872 | TORX WRENCH - 30 | - | |
| 8 | 71 11 7 667 948 | TORX WRENCH FOR CODED SCREW - 30 | - | |
| 9 | 71 11 7 655 301 | TORX WRENCH - 45 | - | |
| 10 | 07 11 9 906 020 | INNER HEX SPANNER - BLACK5 | - | |
| 11 | 52 53 7 650 966 | TORX WRENCH - 40 | - | |
| 13 | 71 11 7 676 887 | SPARK PLUG WRENCH - BLACK 16 | - | |
| 14 | 12 13 7 673 248 | EXTRACTOR FOR SPARK PLUG COIL | - | |
| 15 | 51 16 2 309 916 | TOOL BAG | - | |
| 16 | 71 11 7 692 574 | SCREWDRIVER INSERT - PH1/TX25 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
