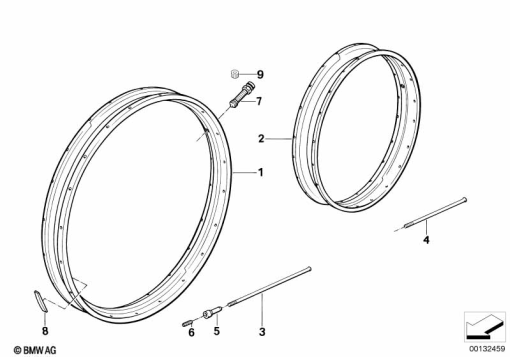

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 552 162 | WHEEL, FRONT - 2,50X19 MT H2 | - | |
| 2 | 36 31 8 552 164 | WHEEL RIM REAR - 4,00X17 MT H2 | - | |
| 3 | 36 31 7 664 595 | SPOKE, FRONT STAINLESS STEEL - L=198MM | - | |
| 4 | 36 31 7 664 593 | SPOKE, REAR STAINLESS STEEL - L=177MM | - | |
| 5 | 36 31 1 452 727 | NIPPLE - M4 | - | |
| 6 | 07 11 9 906 097 | GRUB SCREW - M4X5 | - | |
| 7 | 36 31 7 653 064 | VALVE - D=15MM | - | |
| 8 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 8 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 8 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 8 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 8 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 8 | - |
