R1100GS (259E) | Vehicle Trim
PAINTED PARTS 737 MARRAKESH RED/WHITE

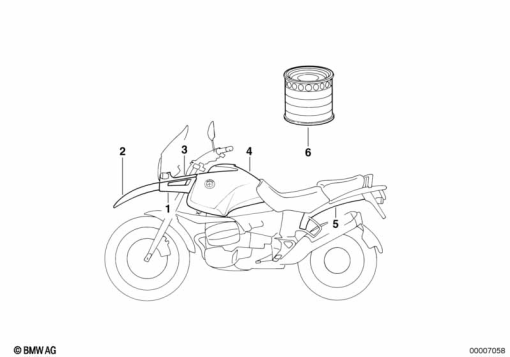

Diagram #51_3220 | 12 parts | 2 available in shop
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 313 895 | LATERAL TRIM PANEL LEFT - SILVER | 1 | |
| 1 | 46 63 2 313 896 | LATERAL TRIM PANEL RIGHT - SILVER | 1 | |
| 2 | 46 61 2 324 236 | UPPER MUDGUARD - MARRAKESCHROT | 1 | |
| 3 | 46 63 2 324 244 | COVER,TOP - SILVER | 1 | |
| 4 | 16 11 2 325 929 | FUEL TANK WITH ORNAMENTAL LINE - MARRAK/WS. | 1 | |
| 5 | 46 62 2 324 240 | REAR MUDGUARD - MARRAKESCHROT | 1 | |
| 6 | 51 91 0 142 136 | TOUCH UP PENCIL MARRAKESCHROT - 222 | 1 | |
| 6 | 51 91 0 146 153 | BASE PAINT, TWO-COAT MARRAKESCHROT - 500ML 222 | 1 | |
| 6 | 51 91 0 302 270 | SET: TOUCH UP PENCIL SETE ALPINWHITE - 2X12ML 146 | 1 | |
| 6 | 51 91 1 240 266 | RULING INK BLACK - 250ML 102 | 1 | |
| 6 | 51 91 2 307 053 | SPRAY MARRAKESCHROT - 222 | 1 | |
| 6 | 51 91 2 407 535 | SET: SPRAY-PAINT ALPINWHITE III UNICOLOR - 2X150ML 146 | 1 |
