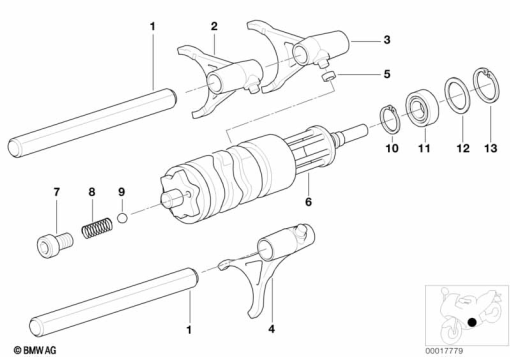

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 31 1 451 113 | AXLE | - | |
| 2 | 23 31 1 340 388 | SHIFTING FORK 1ST AND 2ND GEAR | - | |
| 3 | 23 31 1 340 390 | SHIFTING FORK 5ST GEAR | - | |
| 4 | 23 31 1 340 389 | SHIFTING FORK 3RD AND 4TH GEAR | - | |
| 5 | 23 31 1 451 114 | ROLL PIN | - | |
| 6 | 23 31 1 340 356 | SHIFTING ROLL | - | |
| 7 | 23 31 1 451 119 | FILLISTER-HEAD SCREW | - | |
| 8 | 23 31 1 451 118 | COIL SPRING | - | |
| 9 | 07 11 9 986 270 | BALL - 6MM III | - | |
| 10 | 07 11 9 934 060 | LOCK RING - 12X1,0 | - | |
23 11 1 340 370 | LOCK RING - 12X1,1Alternative for position 10 | - | ||
23 11 1 340 371 | LOCK RING - 12X1,2Alternative for position 10 | - | ||
| 11 | 23 12 1 340 327 | GROOVED BALL BEARING - 12X28X8 | - | |
| 12 | 23 21 1 341 739 | SUPPORT - 20X28X2 | - | |
| 13 | 23 21 1 341 738 | LOCK RING - 28X1,2 | - | |
23 21 1 341 737 | LOCK RING - 28X1,3Alternative for position 13 | - | ||
23 21 1 341 736 | LOCK RING - 28X1,4Alternative for position 13 | - | ||
23 21 1 341 735 | LOCK RING - 28X1,5Alternative for position 13 | - |
