R1100GS (259E) | Transmission

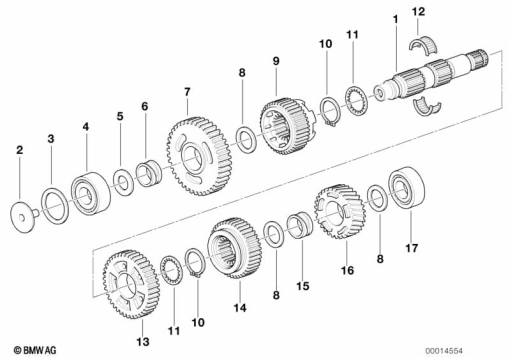

5-SPEED TRANS. OUTPUT SHAFT M 97
Diagram #23_0759 | 26 parts | 3 available in shop
100%
Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 21 1 340 349 | OUTPUT SHAFT - M97 | 1 | |
| 2 | 23 11 1 340 426 | OIL GUIDE | 1 | |
| 3 | 23 11 1 451 138 | SHIM - 37X47X0,30 | 1 | |
| 3 | 23 11 1 341 431 | SHIM - 37X47X0,35 | 1 | |
| 3 | 23 11 1 451 139 | SHIM - 37X47X0,40 | 1 | |
| 3 | 23 11 1 341 432 | SHIM - 37X47X0,45 | 1 | |
| 3 | 23 11 1 451 140 | SHIM - 37X47X0,50 | 1 | |
| 3 | 23 11 1 341 433 | SHIM - 37X47X0,55 | 1 | |
| 4 | 23 12 2 330 176 | GROOVED BALL BEARING - 20X47X14 | 1 | |
| 5 | 23 21 2 330 083 | SUPPORT - 20X35X1,6 | 1 | |
| 6 | 23 21 1 451 078 | BUSH | 1 | |
| 7 | 23 21 1 451 079 | GEAR WHEEL 1ST GEAR | 1 | |
| 8 | 23 21 1 451 144 | SHIM - 25X35X2,0 | 1 | |
| 8 | 23 21 1 451 902 | SHIM - 25X35X1,9 | 1 | |
| 8 | 23 21 1 451 903 | SHIM - 25X35X1,8 | 1 | |
| 8 | 23 21 1 451 904 | SHIM - 25X35X1,7 | 1 | |
| 8 | 23 21 1 451 905 | SHIM - 25X35X1,6 | 1 | |
| 9 | 23 21 1 451 077 | GEAR WHEEL 4TH GEAR | 1 | |
| 10 | 23 21 1 451 154 | LOCK RING - 31X1,5 | 1 | |
| 11 | 23 21 1 451 072 | WASHER | 1 | |
| 12 | 23 31 1 451 898 | NEEDLE CAGE - 27X33X17 | 1 | |
| 13 | 23 22 2 325 523 | SHIFT GEAR FOR 2ND. GEAR | 1 | |
| 14 | 23 21 1 451 073 | GEAR WHEEL 3RD GEAR | 1 | |
| 15 | 23 21 1 451 074 | BUSH | 1 | |
| 16 | 23 22 2 325 524 | SHIFT GEAR FOR 5TH. GEAR | 1 | |
| 17 | 23 12 2 325 518 | CLEAN BEARING GROOVED BALL BEARING - 25X52X15 | 1 |
