R1100GS (259E) | Steering

HANDLE UNIT RIGHT/SINGLE PARTS

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

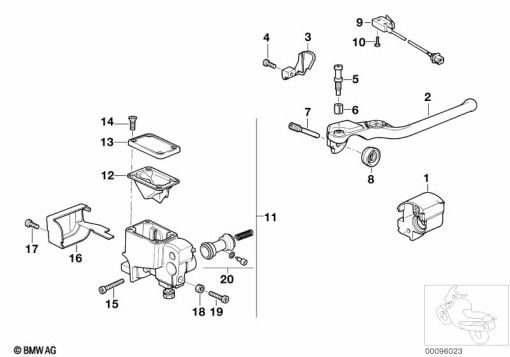

Diagram #32_0784 | 22 parts

100%

Parts List (22)

#	Part Number	Description	Qty
1	32 72 2 310 750	HOUSING	-
2	32 72 2 314 072	HAND LEVER, ADJUSTABLE, BLACK, RIGHT	-
3	32 72 2 310 752	COVER	-
4	32 72 2 351 537	COUNTERSUNK SCREW - M5X16	-
5	32 72 2 310 753	SCREW	-
6	32 72 2 310 754	BUSH	-
7	32 72 2 310 755	SCREW	-
8	32 72 2 310 756	RUBBER BOOT	-
9	61 31 1 459 870	FRONT STOP LIGHT SWITCH	-
10	32 72 2 333 066	FILLISTER-HEAD SCREW - M2X12 4.8 (to 12/02)	-
	07 11 9 907 425	COUNTERSUNK SCREW - M2X12-8.8-MKAlternative for position 10	-
11	32 72 2 352 190	SET: CYLINDER WITH PISTON, ANODIZED - D=20MM	-
12	32 72 2 312 421	RUBBER BOOT	-
13	32 72 2 312 422	COVER	-
14	32 72 2 351 535	COUNTERSUNK HEAD SCREW - M5X16	-
15	32 72 2 311 147	SCREW	-
16	32 72 2 310 757	COVER	-
17	63 12 2 313 509	FILLISTER HEAD SCREW - M5X12	-
18	32 72 2 311 141	0.01	-
19	32 72 2 311 502	COUNTERSUNK HEAD SCREW - M6X20	-
20	32 72 2 332 037	REPAIR KIT, PISTON, ANODIZED - D=20MM	-
-	32 72 2 352 190	SET: CYLINDER WITH PISTON, ANODIZED - D=20MM	-
