R1100GS (259E) | Steering
BOWDEN CABLE/CABLE DISTRIBUTOR

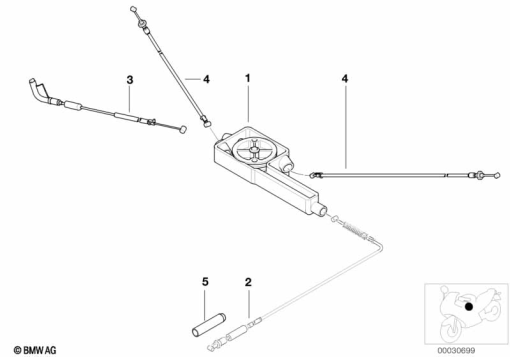

Diagram #32_0812 | 6 parts | 5 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 54 7 657 003 | CABLE DISTRIBUTOR (from 07/96) | 1 | |
| 2 | 32 73 7 659 693 | CHOKE CABLE - L=1002MM (from 07/96) | 1 | |
| 3 | 32 73 7 659 692 | THROTTLE CABLE - L=1005MM (from 07/96) | 1 | |
| 4 | 32 73 7 692 563 | BOWDEN CABLE, THROTTLE VALVE, LEFT - L=200MM (from 07/96) | 1 | |
| 4 | 32 73 7 692 562 | BOWDEN CABLE, THROTTLE VALVE, RIGHT - L=140MM (from 07/96) | 1 | |
| 5 | 32 73 2 351 656 | RUBBER GROMMET (from 07/96) | 1 |
