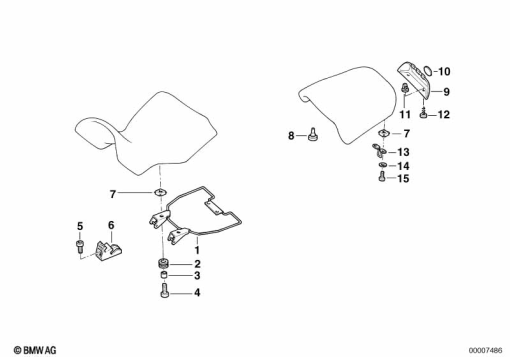

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 2 313 289 | 0.84 | 1 | |
| 2 | 62 21 7 670 749 | RUBBER GROMMET - 8X18X12MM | 1 | |
| 3 | 63 12 7 727 887 | COLLAR BUSH - 18X6,1X8-ZNNIV | 1 | |
| 4 | 07 11 9 919 717 | FILLISTER-HEAD SCREW - M6X30 | 1 | |
| 5 | 07 11 9 900 555 | FILLISTER-HEAD SCREW - M5X16-Z1-ST-ZNS | 1 | |
| 6 | 52 53 2 313 291 | SERRATED AJUSTMENT | 1 | |
| 7 | 07 12 9 926 512 | CAGE NUT - M6 | 1 | |
| 8 | 52 53 1 230 319 | RUBBER SUPPORT - D=18MM | 1 | |
| 9 | 52 53 2 313 288 | COVER - BLACK | 1 | |
| 10 | 52 53 2 325 201 | BADGE - D=45 | 1 | |
| 11 | 52 53 1 451 393 | EXPANDING NUT | 1 | |
| 12 | 07 11 9 904 176 | SHEET METAL SCREW - ST4,2X19-U2-C-H | 1 | |
| 13 | 52 53 2 313 419 | LOCKING BAR | 1 | |
| 14 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 15 | 07 12 9 905 494 | ISA SCREW - M6X16-8.8-ZNS3 | 1 |
