R1100GS (259E) | Rear Axle & Suspension

CROWNGEAR AND SPACER RINGS

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

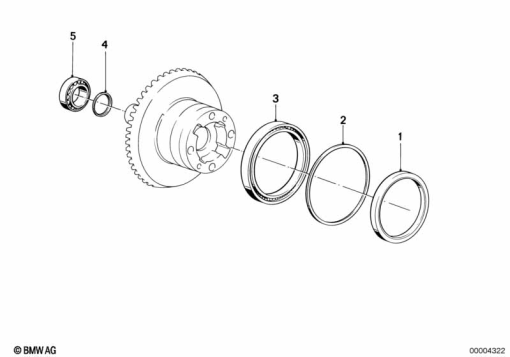

Diagram #33_0639 | 39 parts | 2 available in shop

100%

Parts List (39)

#	Part Number	Description	Qty
1	33 12 7 663 482	SHAFT SEAL - 85X110X10	1
2	33 12 2 310 544	SHIM - 0,100MM	1
2	33 12 2 310 545	SHIM - 0,150MM	1
2	33 12 2 310 546	SHIM - 0,200MM	1
2	33 12 2 310 547	SHIM - 0,300MM	1
2	33 12 2 310 548	SHIM - 0,400MM	1
2	33 12 2 310 550	SHIM - 0,600MM	1
2	33 12 2 310 551	SHIM - 0,700MM	1
2	33 12 2 310 552	SHIM - 0,800MM	1
2	33 12 2 310 553	SHIM - 0,900MM	1
2	33 12 2 310 554	SHIM - 1,000MM	1
2	33 12 2 310 556	SHIM - 1,200MM	1
2	33 12 2 310 557	SHIM - 1,300MM	1
2	33 12 2 310 558	SHIM - 1,400MM	1
2	33 12 2 310 559	SHIM - 1,500MM	1
2	33 12 2 310 560	SHIM - 1,600MM	1
2	33 12 2 310 561	SHIM - 1,700MM	1
2	33 12 2 310 549	SHIM - 0,500MM	1
1	33 12 2 310 550	SHIM - 0,600MM	1
3	33 12 1 242 211	GROOVED BALL BEARING - 85X120X18	1
4	33 12 1 454 403	SHIM - 1,950MM	1
4	33 12 1 454 404	SHIM - 2,000MM	1
4	33 12 1 454 405	SHIM - 2,050MM	1
4	33 12 1 454 406	SHIM - 2,100MM	1
4	33 12 1 454 407	SHIM - 2,150MM	1
4	33 12 1 450 082	SHIM - 2,200MM	1
4	33 12 1 450 083	SHIM - 2,250MM	1
4	33 12 1 450 084	SHIM - 2,300MM	1
4	33 12 1 450 085	SHIM - 2,350MM	1
4	33 12 1 450 086	SHIM - 2,400MM	1
4	33 12 1 450 087	SHIM - 2,450MM	1
4	33 12 1 450 088	SHIM - 2,500MM	1
4	33 12 1 450 089	SHIM - 2,550MM	1
4	33 12 1 450 090	SHIM - 2,600MM	1
4	33 12 1 450 091	SHIM - 2,650MM	1
4	33 12 1 450 092	SHIM - 2,700MM	1
4	33 12 1 450 093	SHIM - 2,750MM	1
4	33 12 1 450 094	SHIM - 2,800MM	1
5	33 12 1 450 481	TAPERED ROLLER BEARING - 25X52X16,25	1
