R1100GS (259E) | Pedals

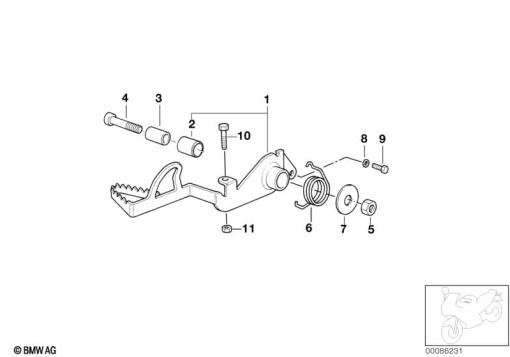

BRAKE PEDAL
Diagram #35_0362 | 11 parts | 2 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 2 325 708 | BRAKE LEVER WITH BUSH | 1 | |
| 2 | 35 21 1 450 231 | BUSHING | 1 | |
| 3 | 35 21 1 450 230 | BUSHING | 1 | |
| 4 | 07 11 9 900 009 | FILLISTER-HEAD SCREW - M10X45-8.8-ZNS | 1 | |
| 5 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | 1 | |
| 6 | 35 21 2 311 670 | RETAINER SPRING | 1 | |
| 7 | 35 21 2 311 672 | WASHER | 1 | |
| 8 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | 1 | |
| 9 | 12 31 2 322 411 | FILLISTER-HEAD SCREW - M5X8 | 1 | |
| 10 | 35 21 1 231 067 | HEX BOLT - M6X20-8.8ZNS3 | 1 | |
| 11 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | 1 |
